蝸輪減速機產品

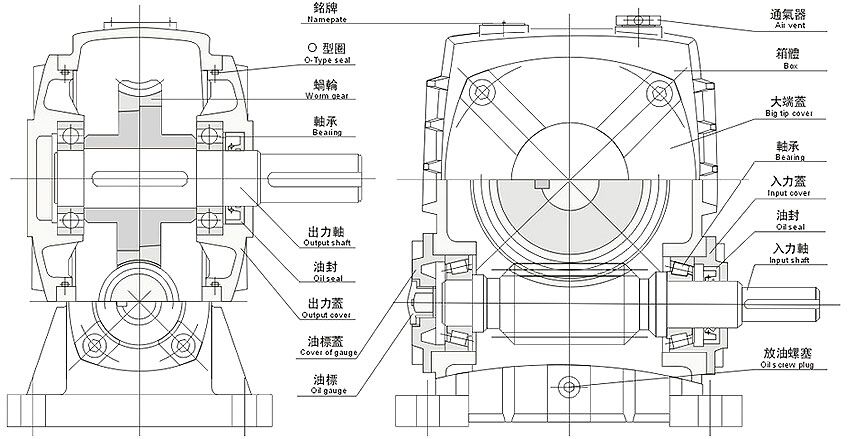

結構圖型號結構表

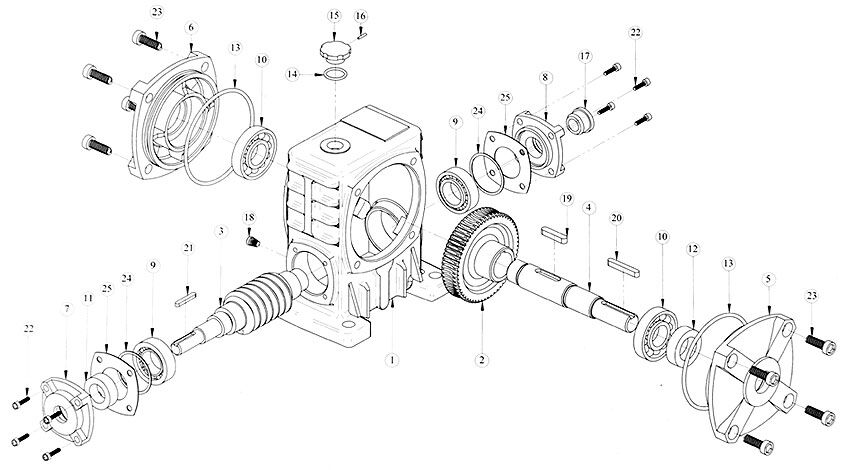

單級WP系列
| NO. | 零件 | Parts | NO. | 零件 | Parts |
| 1 | 機座 | Frame | 14 | 0 型 圈 | 〇 Ring |
| 2 | 蝸輪 | Worm Wheel | 15 | 加 油 蓋 | Oil Hole Cover |
| 3 | 蝸桿軸 | Worm Shaft | 16 | 塞 子 | Pin |
| 4 | 出力軸 | Output Shaft | 17 | 油 標 | Oil Gauge |
| 5 | 出力蓋 | Output Shaft Cover | 18 | 油 塞 | Oil Plug |
| 6 | 出力蓋 | Output Shaft Cover | 19 | 平 鍵 | Key |
| 7 | 入力蓋 | Input Shaft Cover | 20 | 平 鍵 | Key |
| 8 | 入力蓋 | Input Shaft Cover | 21 | 平 鍵 | Key |
| 9 | 軸承 | Bearing | 22 | 內六角螺釘 | Intl.Hex Screw |
| 10 | 軸承 | Bearing | 23 | 內六角螺釘 | Intl.Hex Screw |
| 11 | 油封 | Oil Seal | 24 | 調 整 圈 | Shim |
| 12 | 油封 | Oil Seal | 25 | 密 封 塾 | Gasket |
| 13 | 0型圈 | ORing |
WAP型

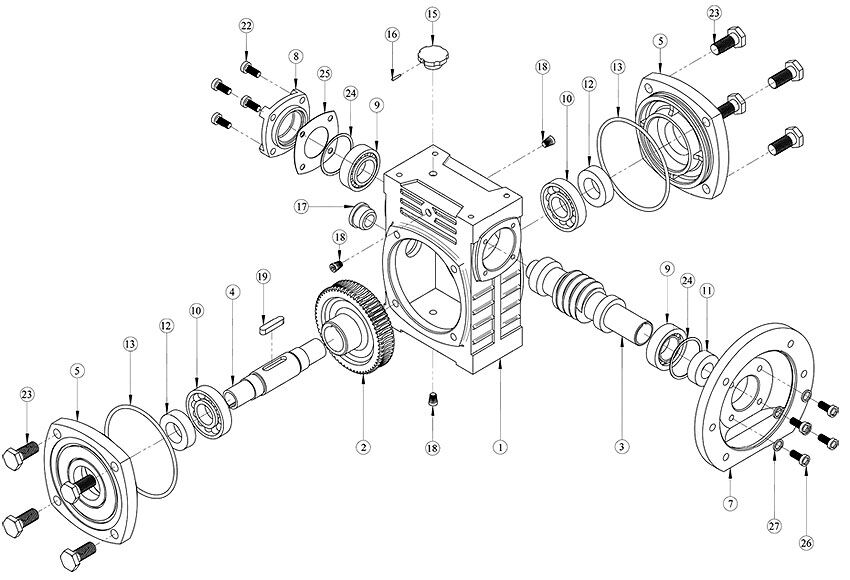

單級WPW系列
?
單級WPW系列
| NO. | 零件 | Parts | NO. | 零件 | Parts |
| 1 | 機座 | Frame | 15 | 加 油蓋 | Oil Hole Cover |
| 2 | 蝸輪 | Worm Wheel | 16 | 塞 子 | Pin |
| 3 | 蝸桿軸 | Worm Shaft | 17 | 油 標 | Oil Gauge |
| 4 | 出力軸 | Output Shaft | 18 | 油 塞 | Oil Plug |
| 5 | 出力蓋 | Output Shaft Cover | 19 | 平 鍵 | Key |
| 7 | 法蘭 | Flange | 22 | 內六角螺釘 | Intl.Hex Screw |
| 8 | 入力蓋 | Input Shaft Cover | 23 | 六 角螺栓 | Hex.bolt |
| 9 | 軸承 | Bearing | 24 | 調 整圈 | Shim |
| 10 | 軸承 | Bearing | 25 | 密 封墊 | Gasket |
| 11 | 油封 | Oil Seal | 26 | 內六角螺釘 | Intl.Hex Screw |
| 12 | 油封 | Oil Seal | 27 | 彈 簧墊圈 | Sping washer |
| 13 | 0型圈 | ORing |
WPWDK型
雙級WPE系列
| NO. | 零件 | Parts | NO. | 零件 | Parts | NO. | 零件 | Parts | |
| 1 | 機座 | Frame | 18 | 油 | 塞 | Oil Plug | 36 | 出 力 蓋 | Output Shaft Cover |
| 2 | 蝸輪 | Worm Wheel | 19 | 平 | 鍵 | Key | 37 | 入 力 蓋 | Input Shaft Cover |
| 3 | 蝸桿軸 | Worm Shaft | 20 | 平 | 鍵 | Key | 38 | A 力 蓋 | Input Shaft Cover |
| 4 | 出力軸 | Output Shaft | 21 | 平 | 鍵 | Key | 39 | 軸 承 | Bearing |
| 5 | 出力蓋 | Output Shaft Cover | 22 | 內六角螺釘 | Intl.Hex Screw | 41 | 油 封 | Oil Seal | |
| 6 | 出力蓋 | Output Shaft Cover | 23 | 內六角螺釘 | Intl.Hex Screw | 43 | 0 型 圈 | O Ring | |
| 8 | 入力蓋 | Input Shaft Cover | 24 | 調 | 整圈 | Shim | 45 | 加 油 蓋 | Oil Hole Cover |
| 9 | 軸承 | Bearing | 25 | 密 | 封墊 | Gasket | 46 | 塞 子 | Pin |
| 10 | 軸承 | Bearing | 28 | 內六角螺釘 | Intl.Hex Screw | 47 | 油 標 | Oil Gauge | |
| 12 | 油封 | Oil Seal | 29 | 軸 | 套 | Shaft sleeve | 48 | 油 塞 | Oil Plug |
| 13 | 0型圈 | ?ORing | 30 | 擋 | 圈 | Snap ring | 51 | 平 鍵 | Key |
| 14 | 0型圈 | ?ORing | 31 | 機 | 座 | Frame | 52 | 內六角螺釘 | Intl.Hex Screw |
| 15 | 加油蓋 | Oil Hole Cover | 32 | 蝸 | 輪 | Worm Wheel | 53 | 內六角螺釘 | Intl.Hex Screw |
| 16 | 塞子 | Pin | 33 | 蝸 | 桿 | Worm Shaft | 54 | 調 整 圈 | Shim |
| 17 | 油標 | Oil Gauge | 35 | 聯接端蓋 | Connecting cover | 55 | 密 封 塾 | Gasket | |
WPEA型
?
?
